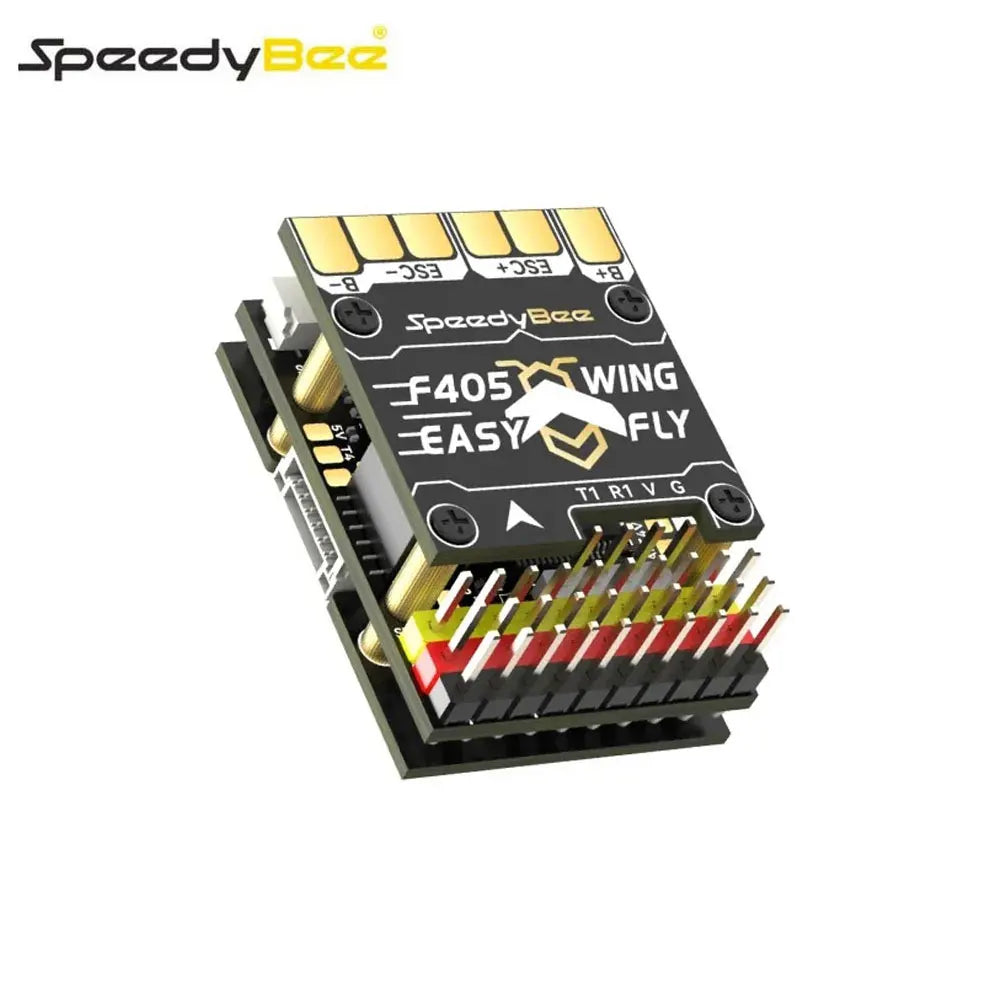

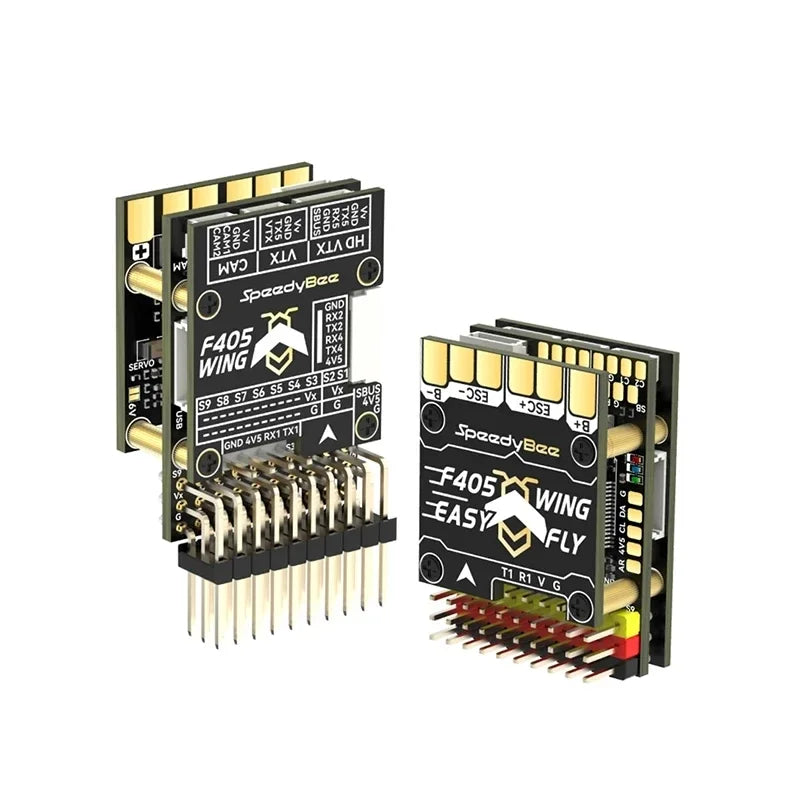

Take your RC fixed-wing airplane projects to the next level with the SpeedyBee F405 WING MINI Flight Controller! Designed for hobbyists and enthusiasts aged 14 and up, this compact and powerful controller is perfect for DIY fixed-wing drones, RC airplanes, and FPV models. With support for 2-6S LiPo batteries, this flight controller delivers smooth, responsive, and stable flight performance for both beginners and advanced pilots.

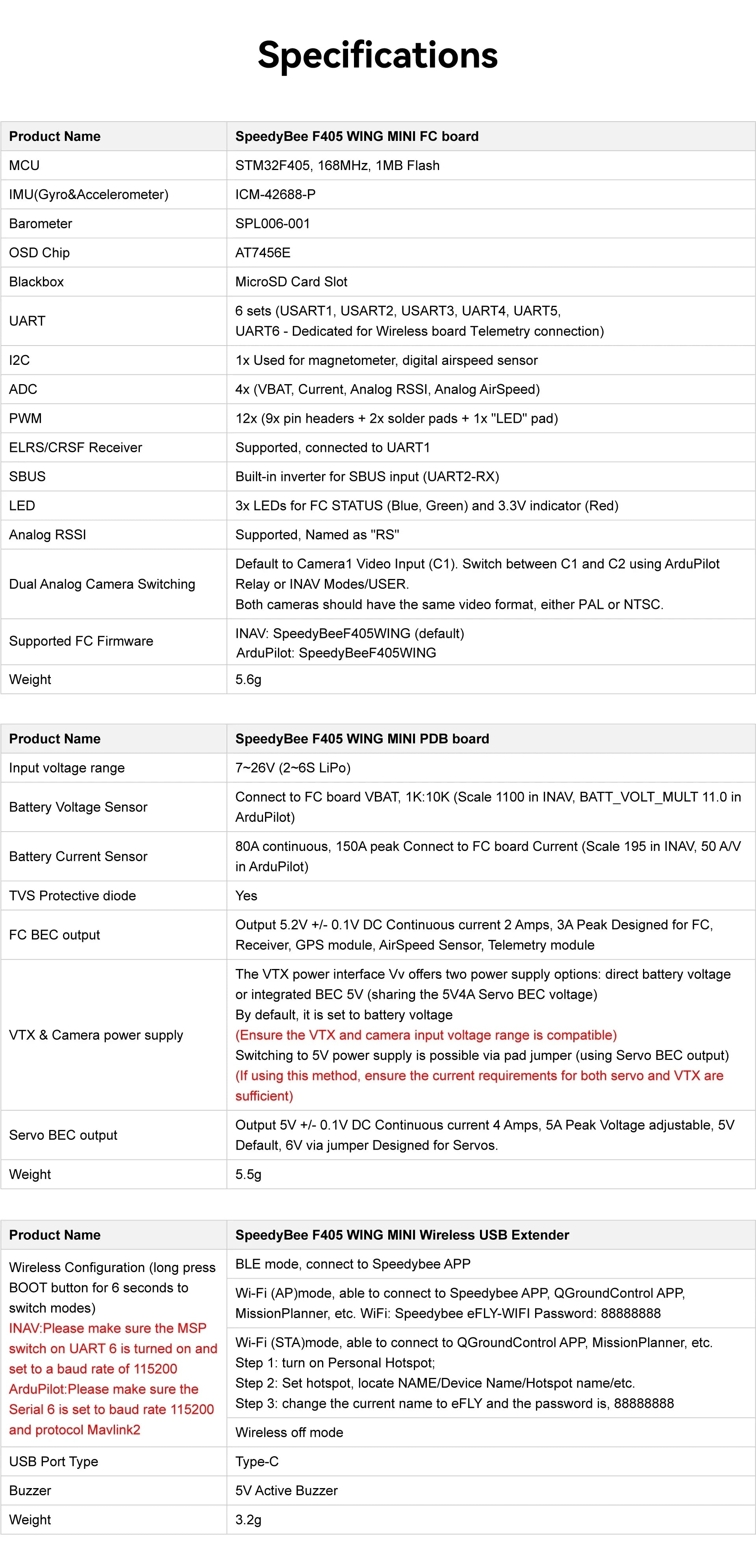

The F405 WING MINI is equipped with the STM32F405 168MHz MCU, ICM-42688-P gyro, and SPL006-001 barometer, ensuring precise stabilization, altitude control, and responsive maneuvering. Its AT7456E OSD chip and onboard microSD Blackbox slot let you monitor flight data and record telemetry for analysis. With Bluetooth support via the SpeedyBee app, you can easily configure flight controller parameters and ESC settings, making setup quick and hassle-free.

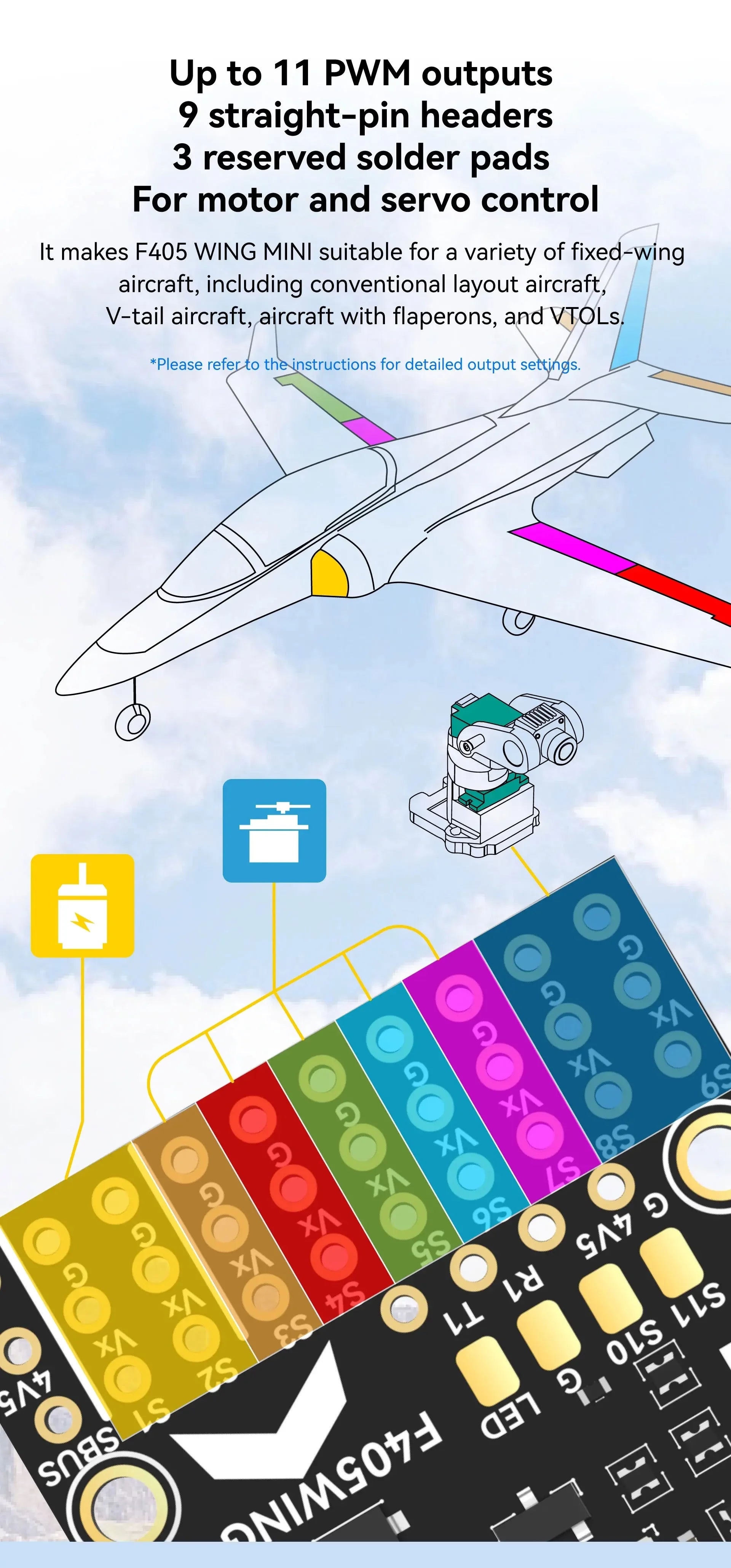

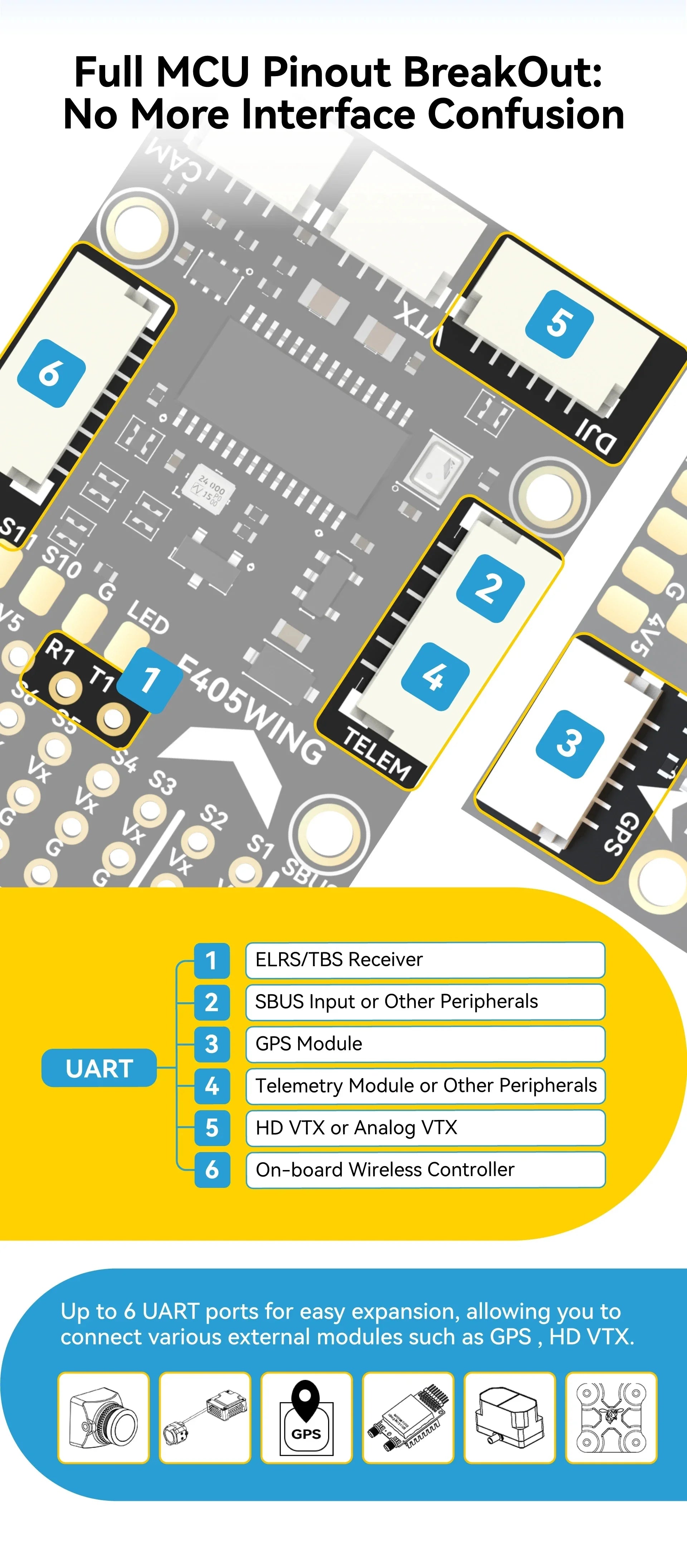

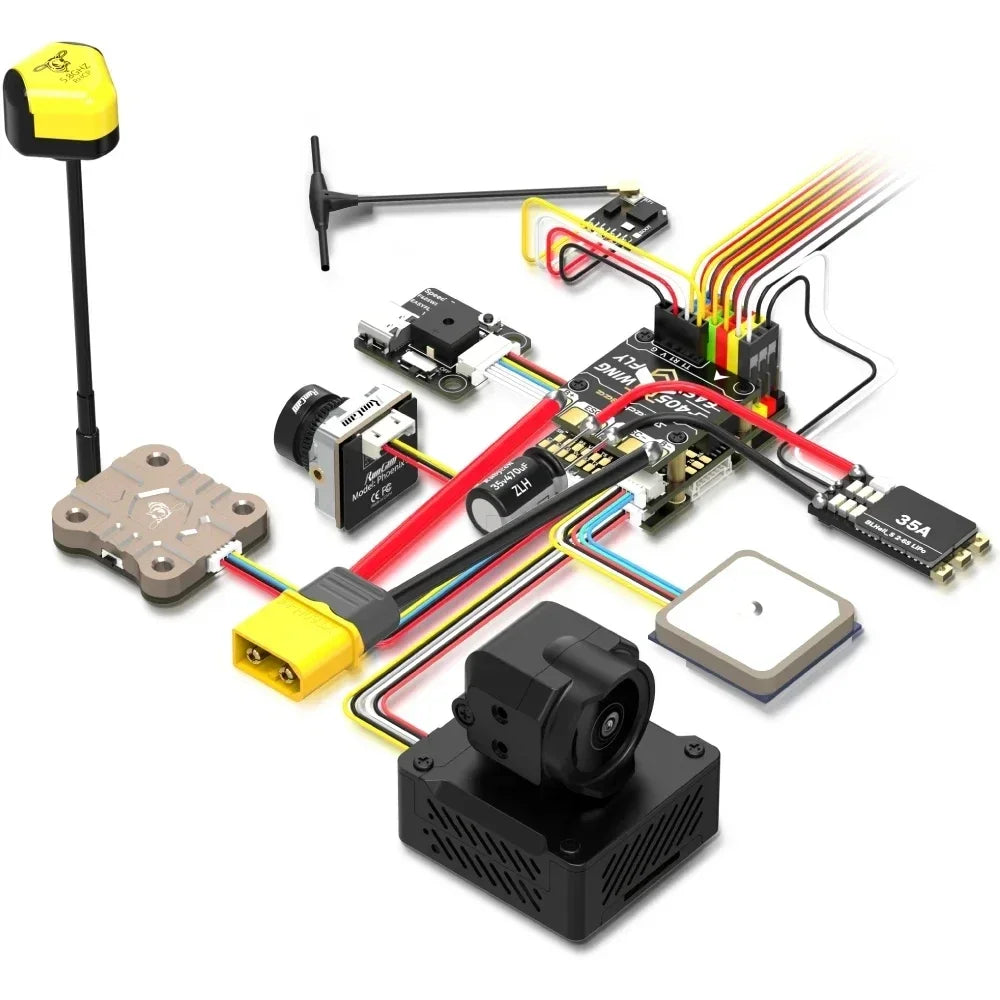

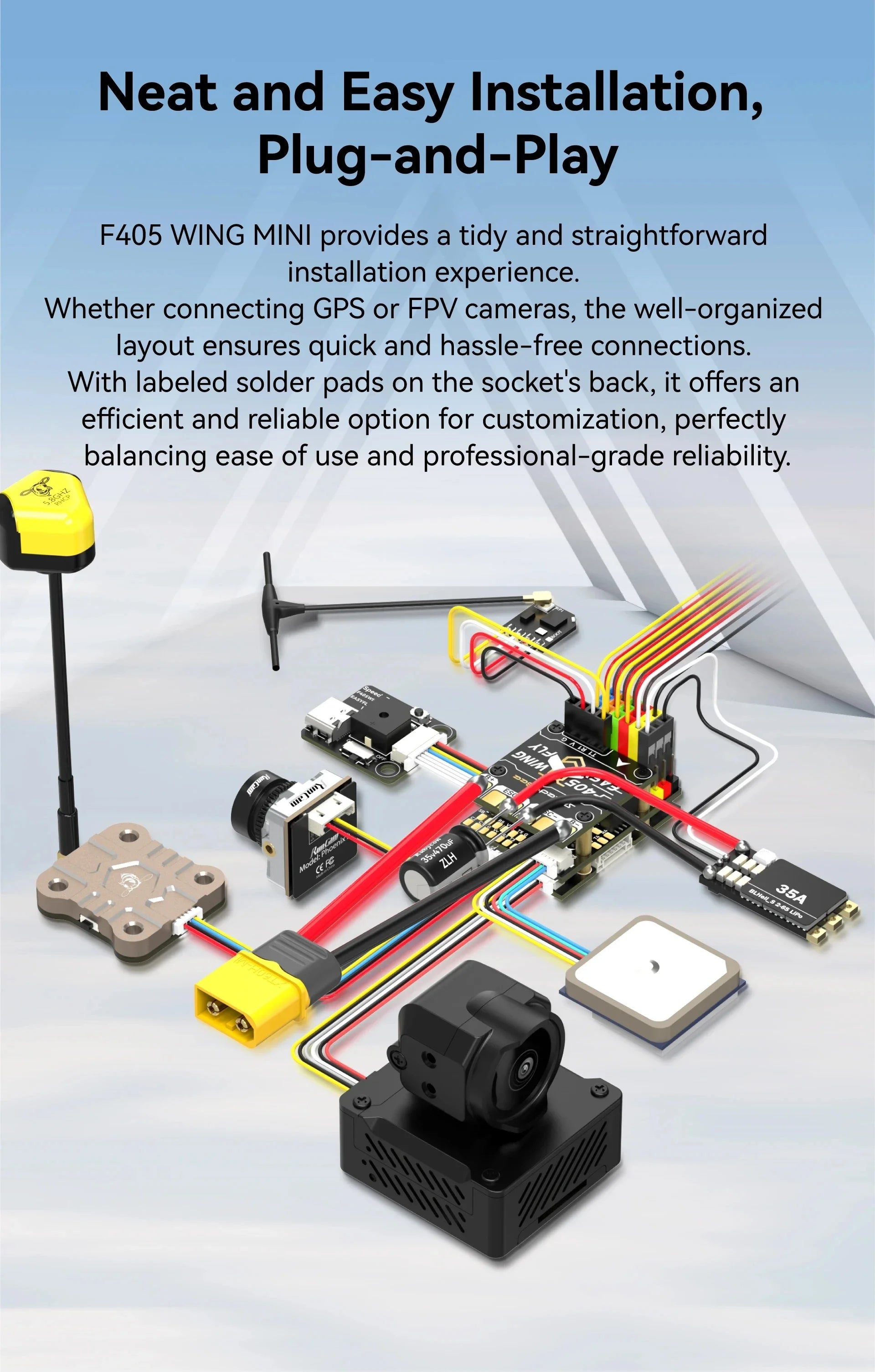

This controller also features built-in support for ELRS/CRSF receivers, SBUS input, dual analog camera switching, and multiple PWM outputs for servos, VTX, and camera integration. The lightweight 20x20mm form factor, combined with robust BEC outputs and TVS protection, makes the F405 WING MINI perfect for compact, high-performance fixed-wing RC airplanes. Compatible with INAV and ArduPilot firmware, this controller gives you full flexibility for advanced flight planning and autopilot features.

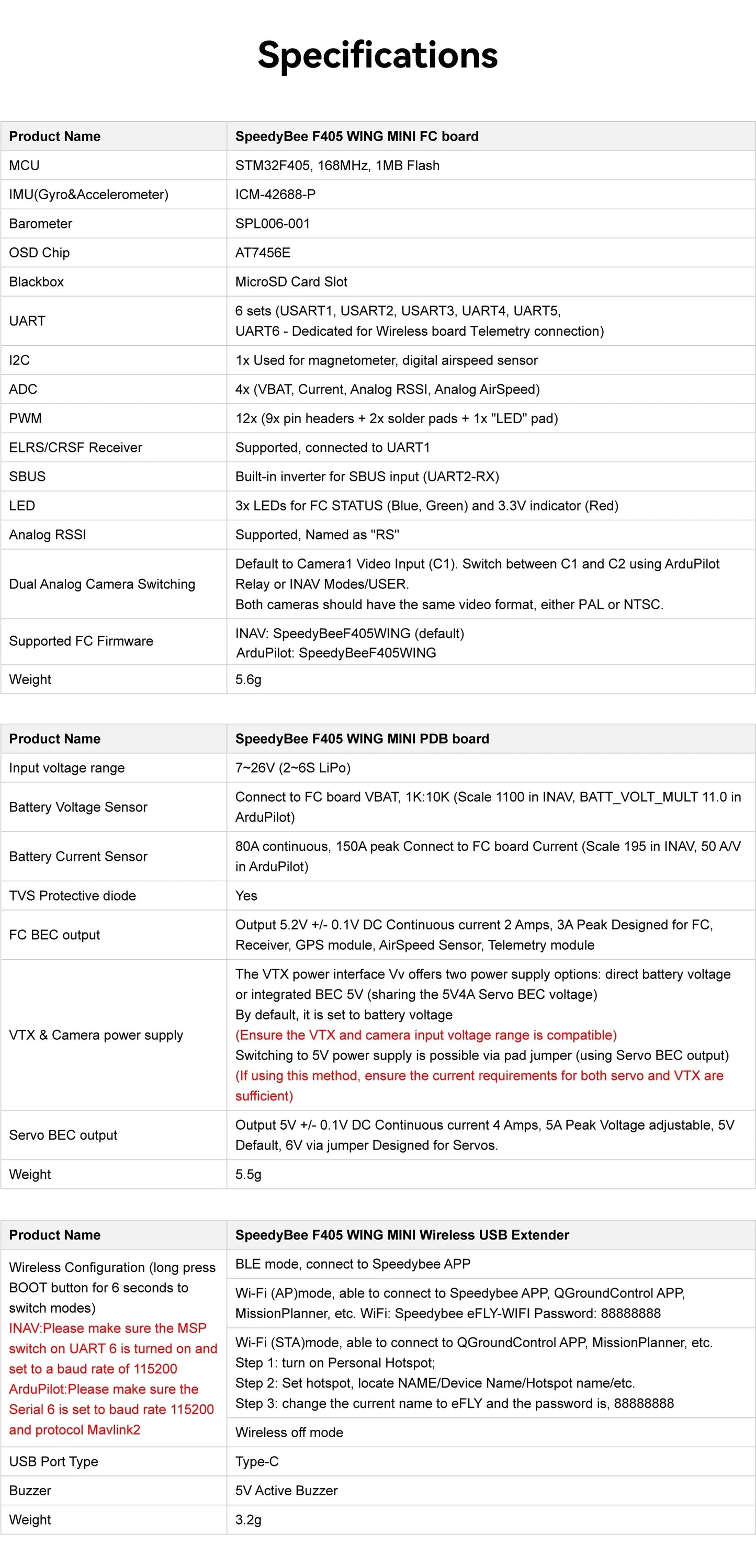

Highlights & Features:

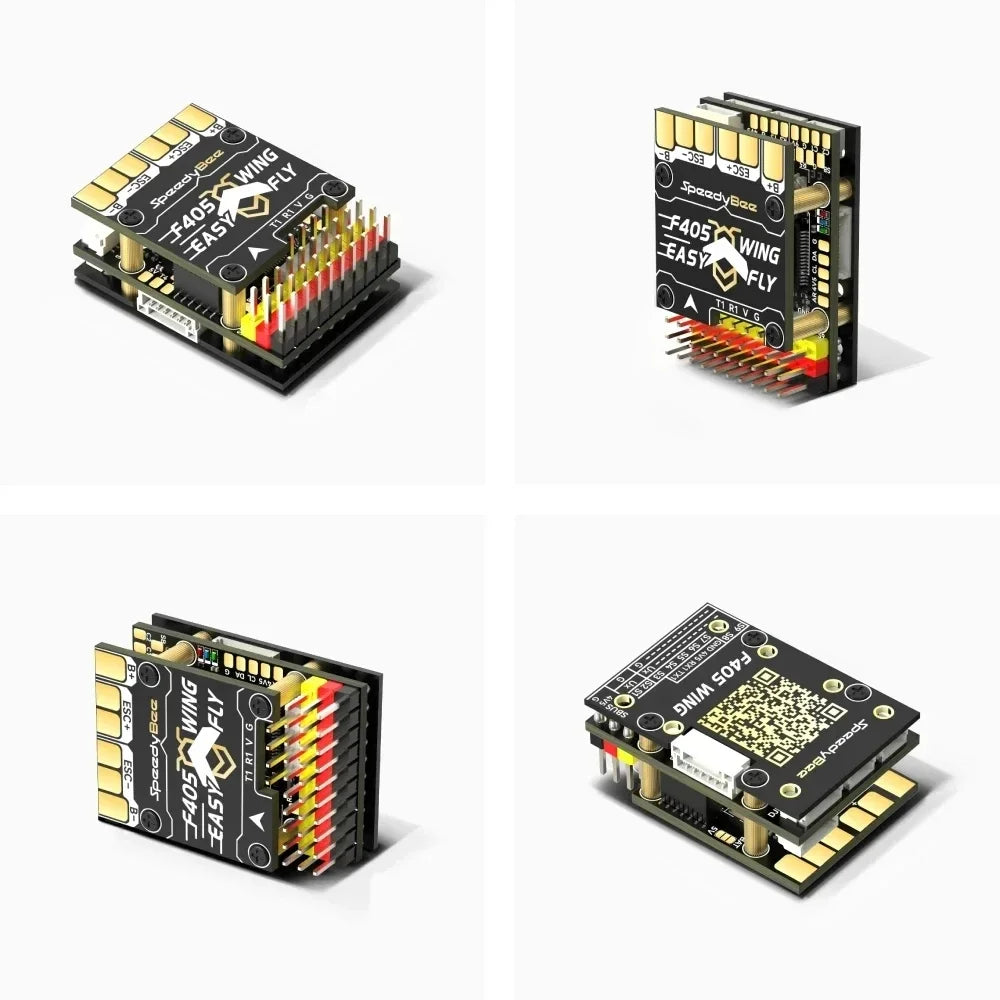

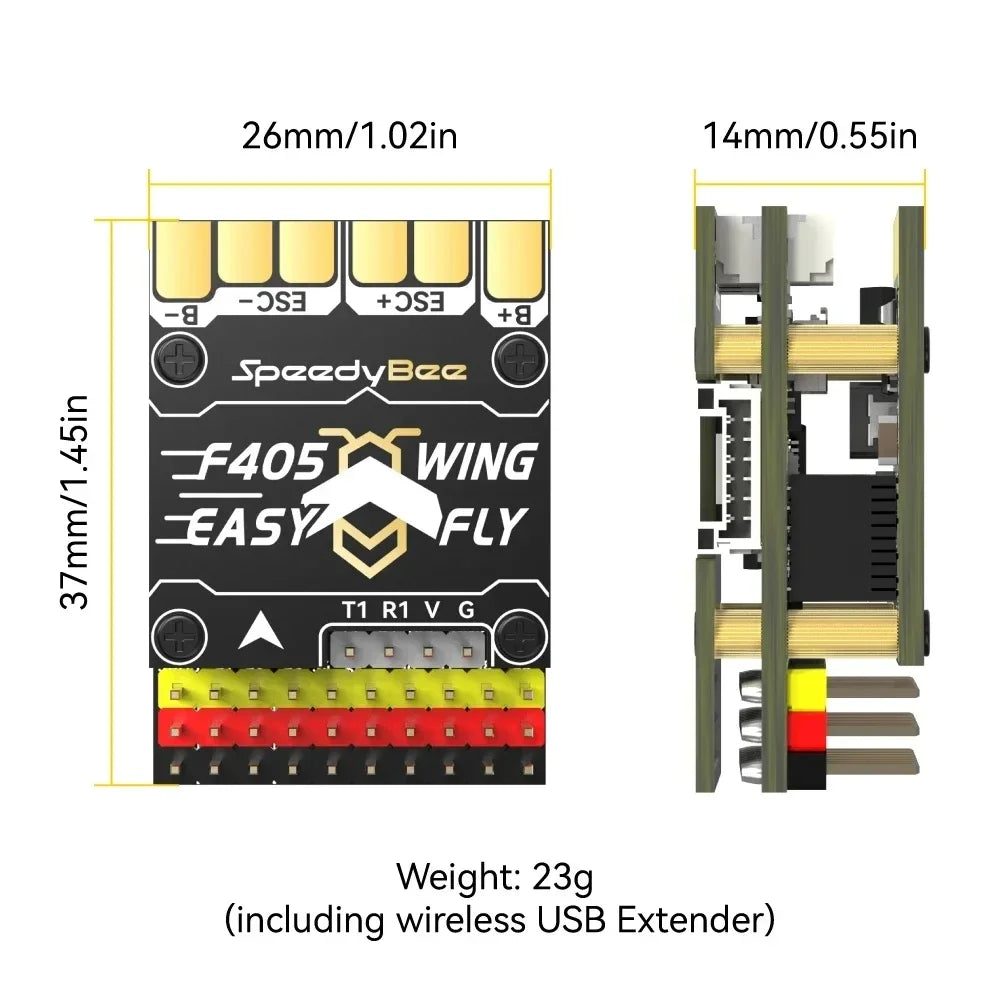

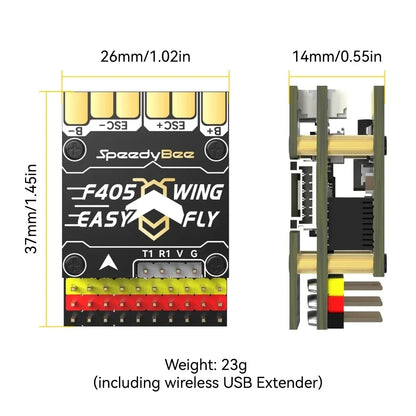

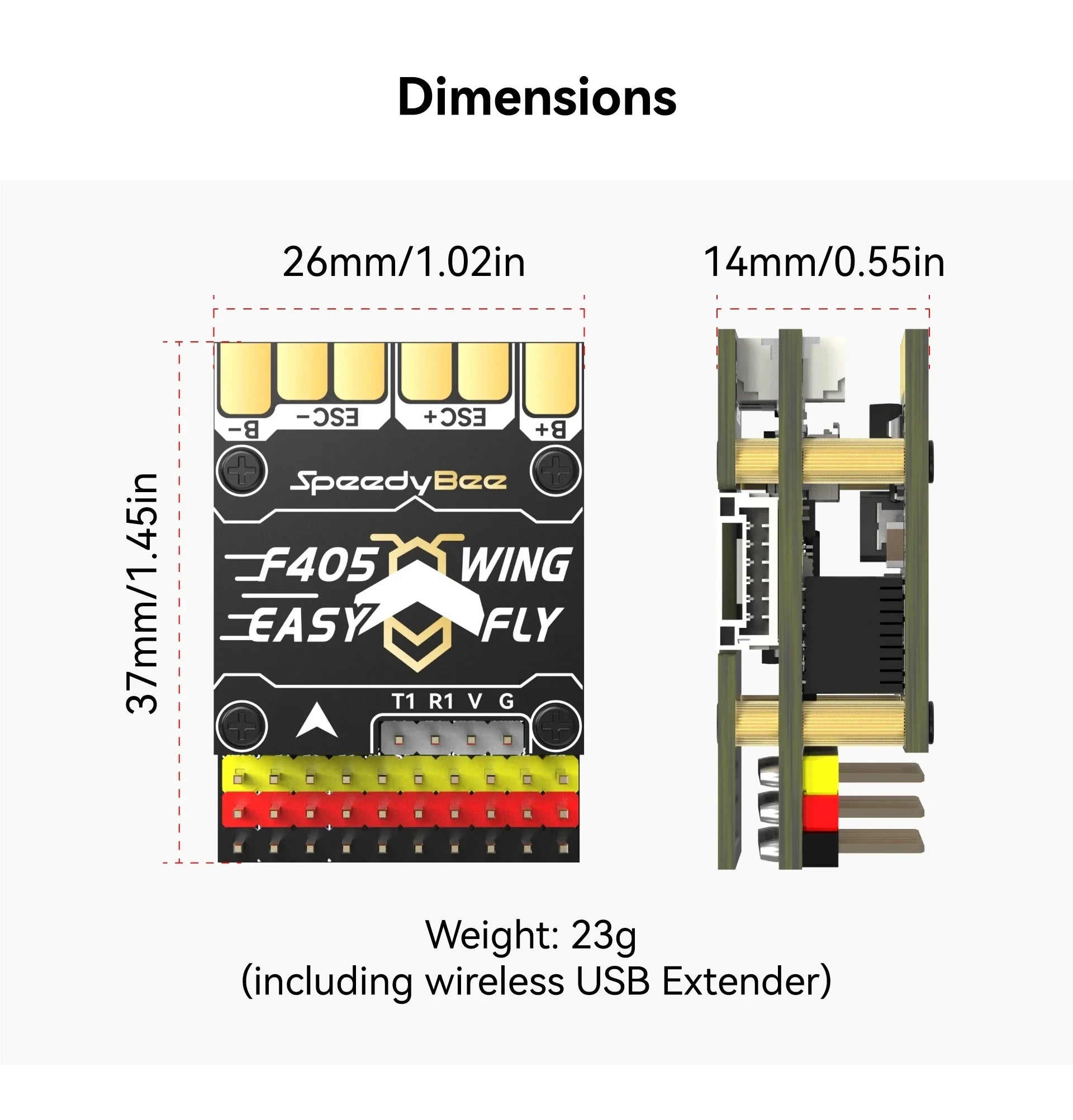

Compact 20x20mm Mini FC: Lightweight 5.6g design ideal for fixed-wing drones.
STM32F405 MCU & ICM-42688-P Gyro: Stable and precise flight control.
Barometer & OSD: SPL006-001 barometer and AT7456E chip for real-time telemetry.
MicroSD Blackbox: Record and analyze flight data easily.
2-6S LiPo Support: Compatible with a wide range of batteries for extended flight.

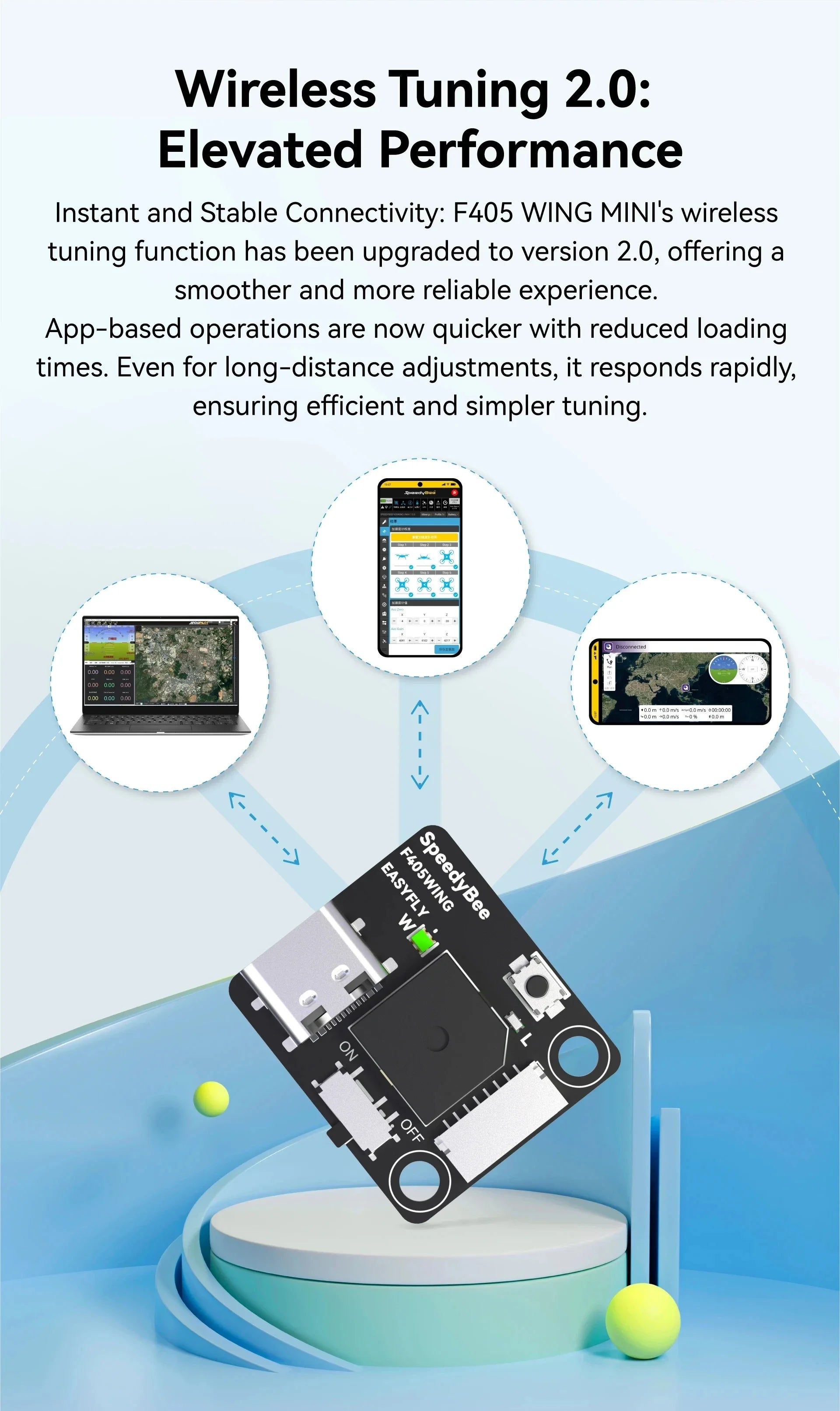

Wireless Configuration: Bluetooth via SpeedyBee app for easy setup.

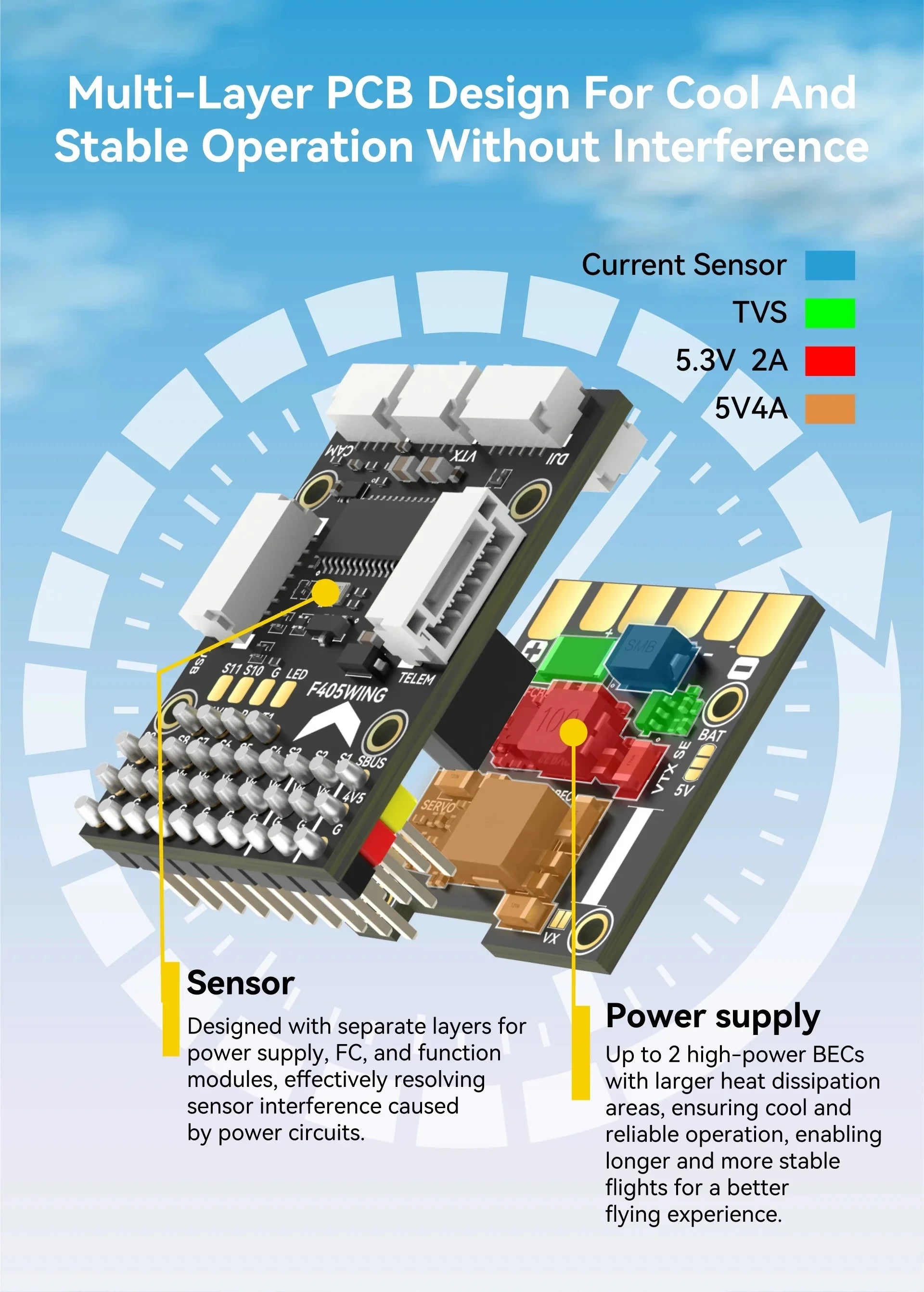

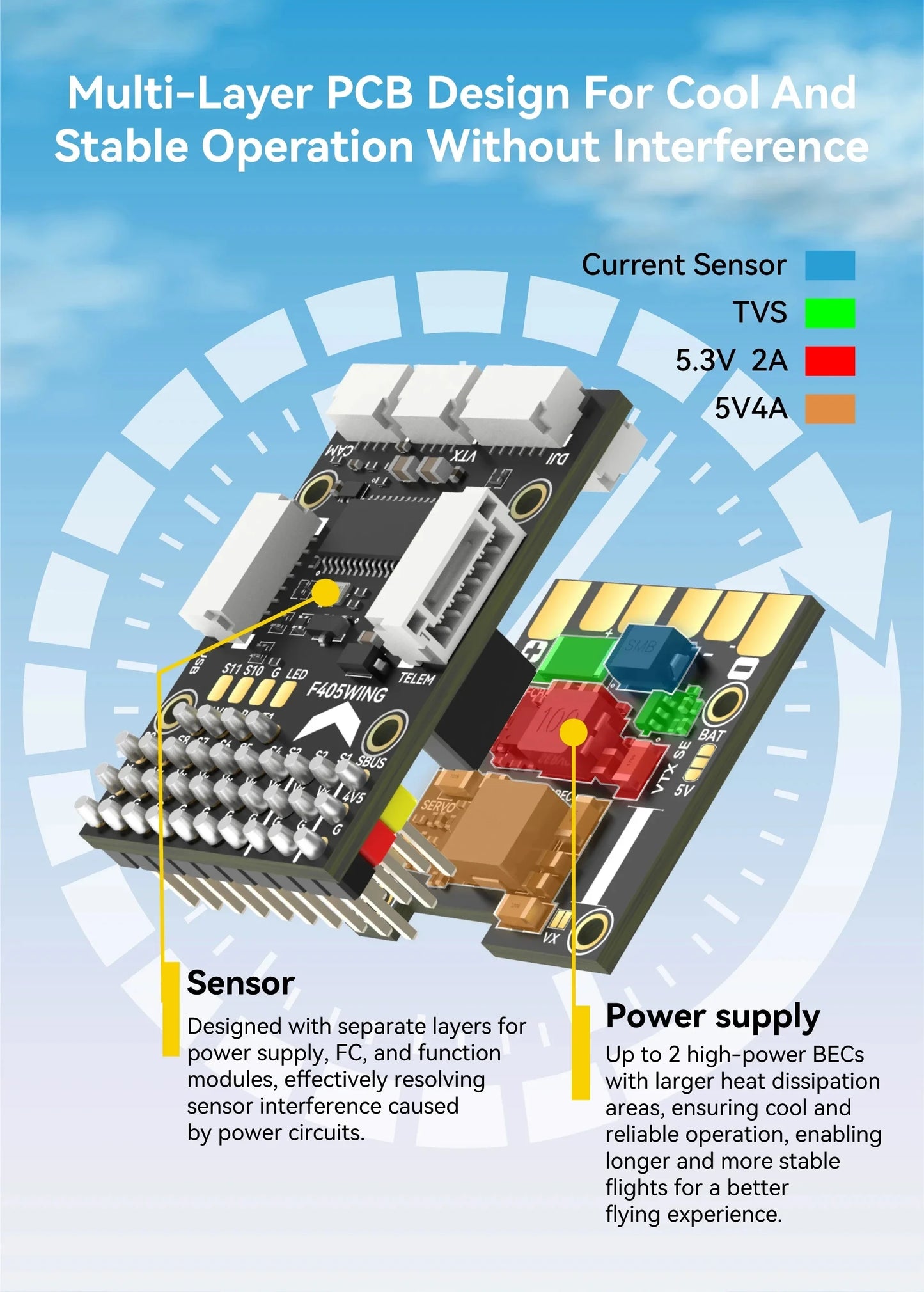

Servo & VTX Power Output: 5V/4A continuous, 5A peak for servos, cameras, and VTX.
Firmware Support: INAV (default) and ArduPilot.
Perfect Use: DIY RC fixed-wing drones, FPV airplanes, RC model airplanes, autonomous flight projects, and hobbyist aviation builds.

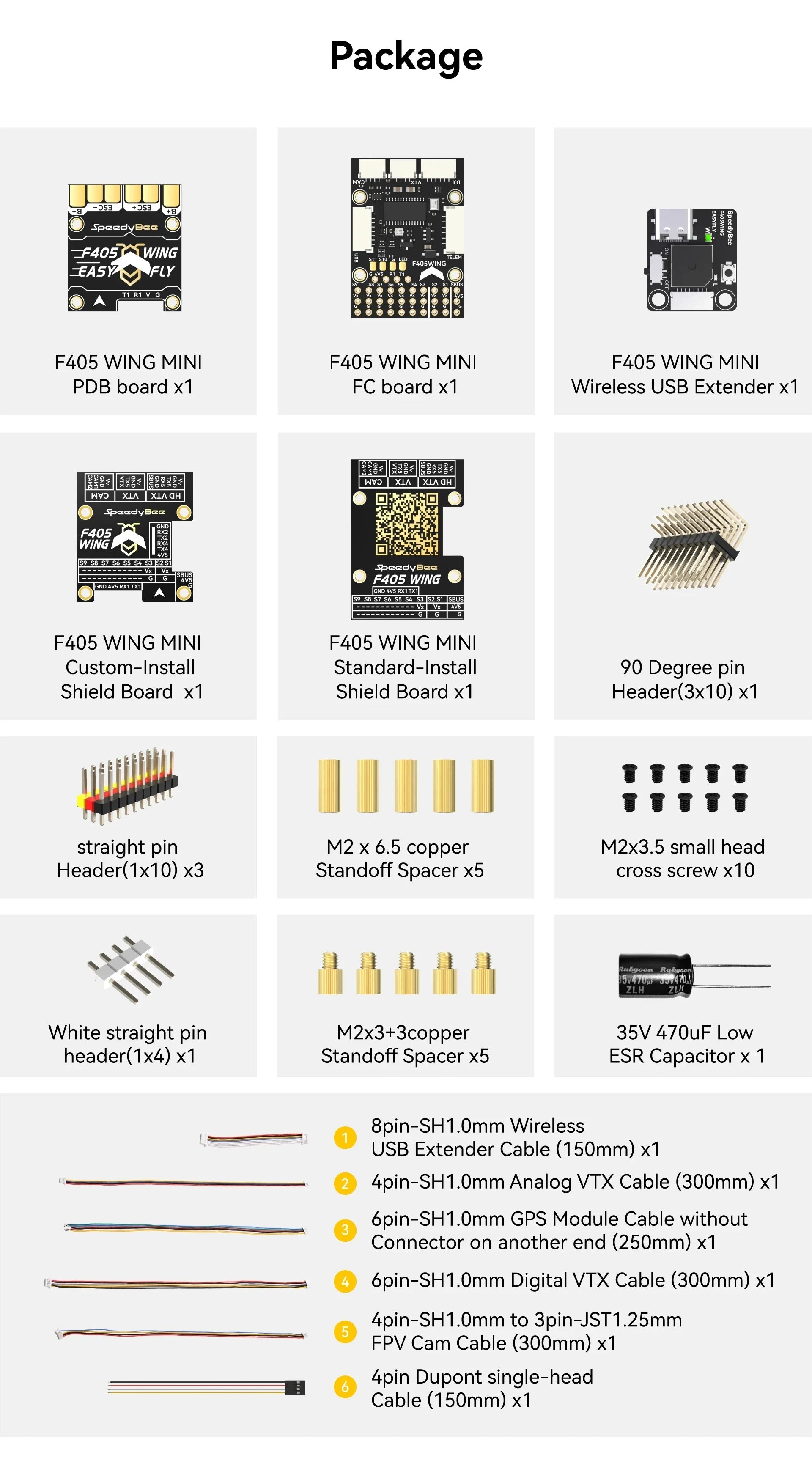

Package Note: Only includes the SpeedyBee F405 WING MINI Flight Controller and associated modules. Batteries, servos, and additional components are not included.
